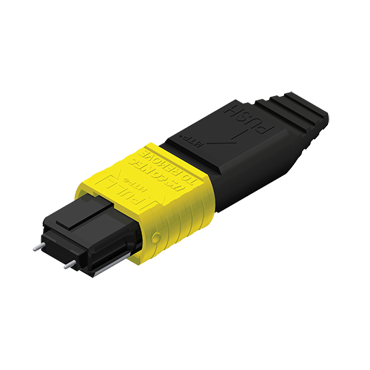

19430, Kit MTP®-16 Ribbon, Male Single-mode Elite, Yellow Housing, 20N Spring Force
特色
Elliptical guide pin tip to minimize ferrule debris
Exceeds TIA and IEC dimensional requirements for optimal performance
Floating ferrule design ensures fiber contact integrity
Highest precision SS guide pins
Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
Removable housing for interferometry and rework
应用
Aggregation of SR4 & PSM4 links
Array fiber to single fiber breakouts and cassettes
High density array trunk cables
Parallel optic patch cables SR-8, SR-16, PSM8
Qualified to TIA-568.3-D
Standards Compliance IEC 61754-7-3; 61754-7-4
Standards Compliance TIA 604-18
Structured cabling per TIA-942 & TIA-568
规格
型号
19430
品牌
MTP®-16
类型
连接器
连接器类型
MTP Elite® 低损型
Key位方向
偏移-TIA 604-18
光纤类型
单模
类型
公头
弹簧力
20N
光纤数量
1x16, 2x16
外壳颜色
黄色
光缆类型
Ribbon
工作环境
受控
尾部线缆类型
标准护套
样式
MPO 16
下载
产品图纸
C17864.pdf
文献资料
MTP_Solutions_Brochure
文献资料
MTP-16_Connector_Handout
视频
抱歉,您的浏览器不支持嵌入式的视频
抱歉,您的浏览器不支持嵌入式的视频
材料清单套件
部件型号
描述
产品图纸
部件型号
19676
描述
Boot_Black_MTP®_BR_Univ_AF
产品图纸
C19676.pdf
部件型号
5551
描述
Spring Push_MTP®_Universal
产品图纸
C10486.pdf
部件型号
22515
描述
Spring_MTP® Univ._20N_HSF
产品图纸
C22515.pdf
部件型号
18297
描述
Pin Clamp_SME Male_MTP®-16
产品图纸
C18297.pdf
部件型号
19102
描述
Hsg_MTP®-16_Yellow
产品图纸
C16819.pdf
部件型号
17242
描述
Dust Cap_MTP®
产品图纸
C17242.pdf
相关产品
18476, MTP® Housing Removal Tool, Universal
18472, Ferrule Insertion Cap, MTP® and MTP® PRO
12013, Spring Compression Tool, MTP®
7104, IBC™ Brand Cleaner MPO II
