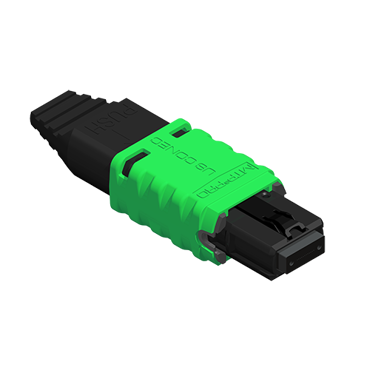

18710, Kit MTP®PRO, Ribbon, Female Single-mode Elite®, Green Housing, 10N Spring Force

特色

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Highest precision SS guide pins
  • Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
  • Quick and effective field pin reconfiguration without removing housing
  • Removable housing for interferometry and rework
  • Simple field polarity change with one-step insertion/extraction from Field Tool

应用

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to GR-1435 service life
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

规格

型号
18710
品牌
MTP®PRO
类型
连接器
连接器类型
MTP Elite® 低损型
Key位方向
可切换极性-TIA-604-5
光纤类型
单模
类型
母头
弹簧力
10N
光纤数量
4+4, 1x12, 2x12 (10N)
外壳颜色
绿色
光缆类型
Ribbon
工作环境
受控
尾部线缆类型
标准护套
样式
MPO

下载

产品图纸
文献资料

视频

材料清单套件

部件型号
描述
产品图纸
部件型号
19676
描述
Boot_Black_MTP®_BR_Univ_AF
产品图纸
部件型号
5551
描述
Spring Push_MTP®_Universal
产品图纸
部件型号
17167
描述
Spring_MTP®Universal Seat_9.8N
产品图纸
部件型号
17861
描述
Spacer_Pin_Female_MTP®Pro
产品图纸
部件型号
18190
描述
Hsg_Green_MTP® Pro
产品图纸
部件型号
17242
描述
Dust Cap_MTP®
