EZ Shuffle™

US Conec’s compact EZ Shuffle™ solution facilitates simple fiber routing meshes of up to 256 fibers. The novel design is engineered to aid fiber management in high density applications by offering a unique, compact, and cost effective way to manufacture and store high density shuffles.

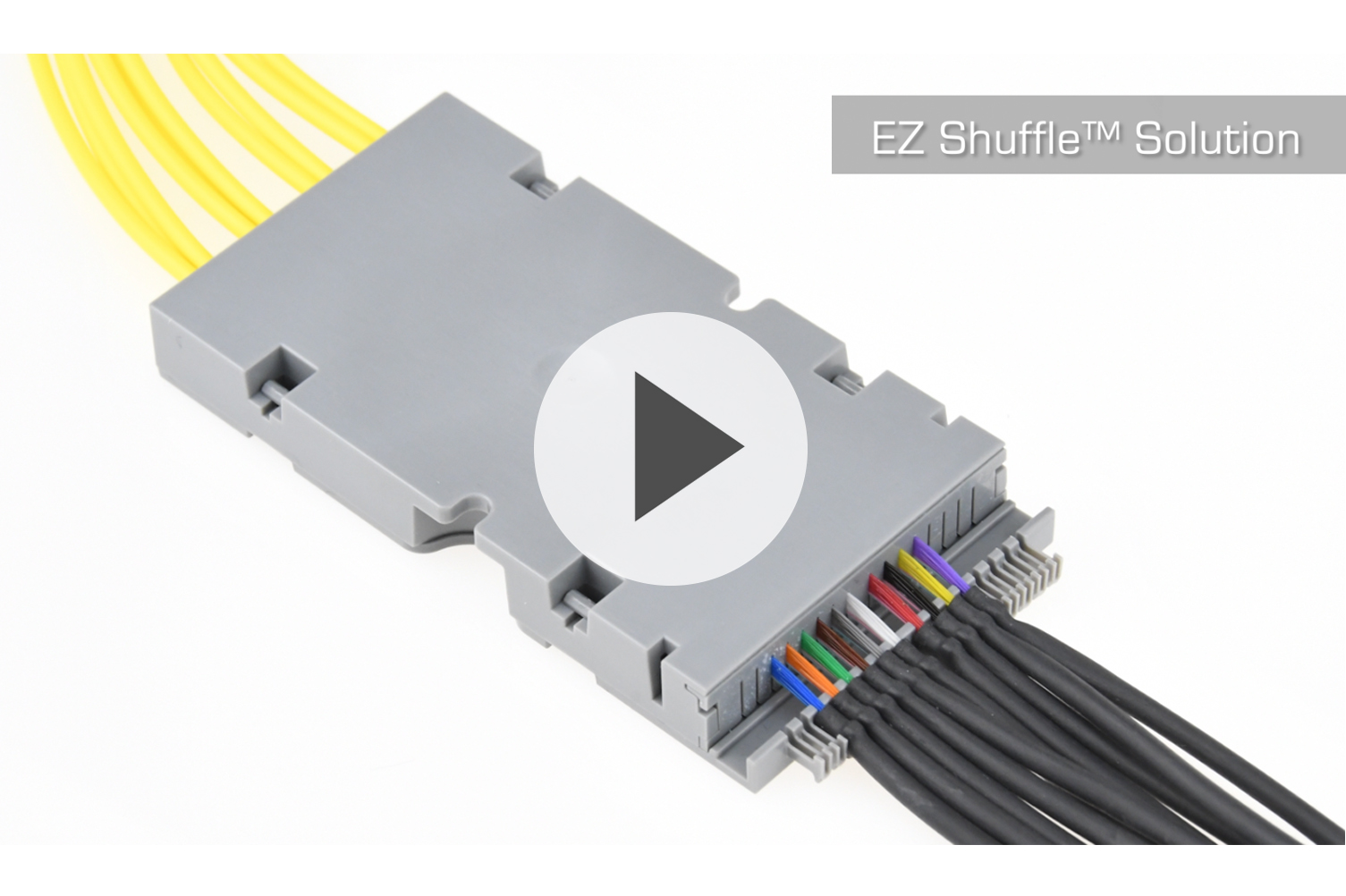

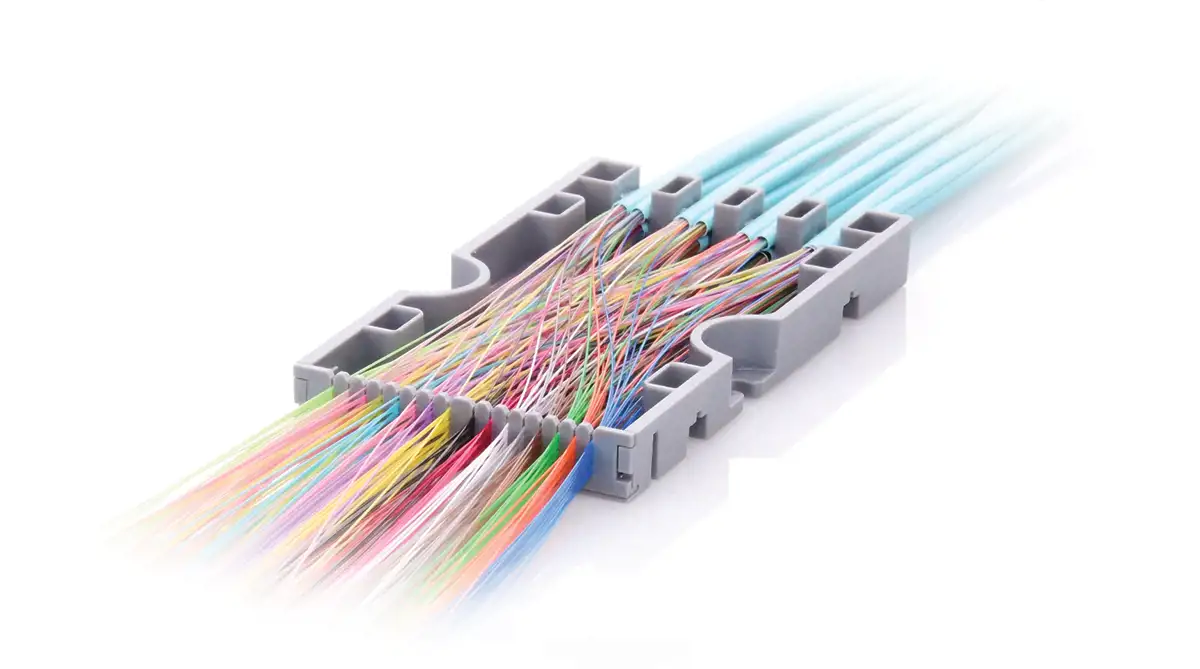

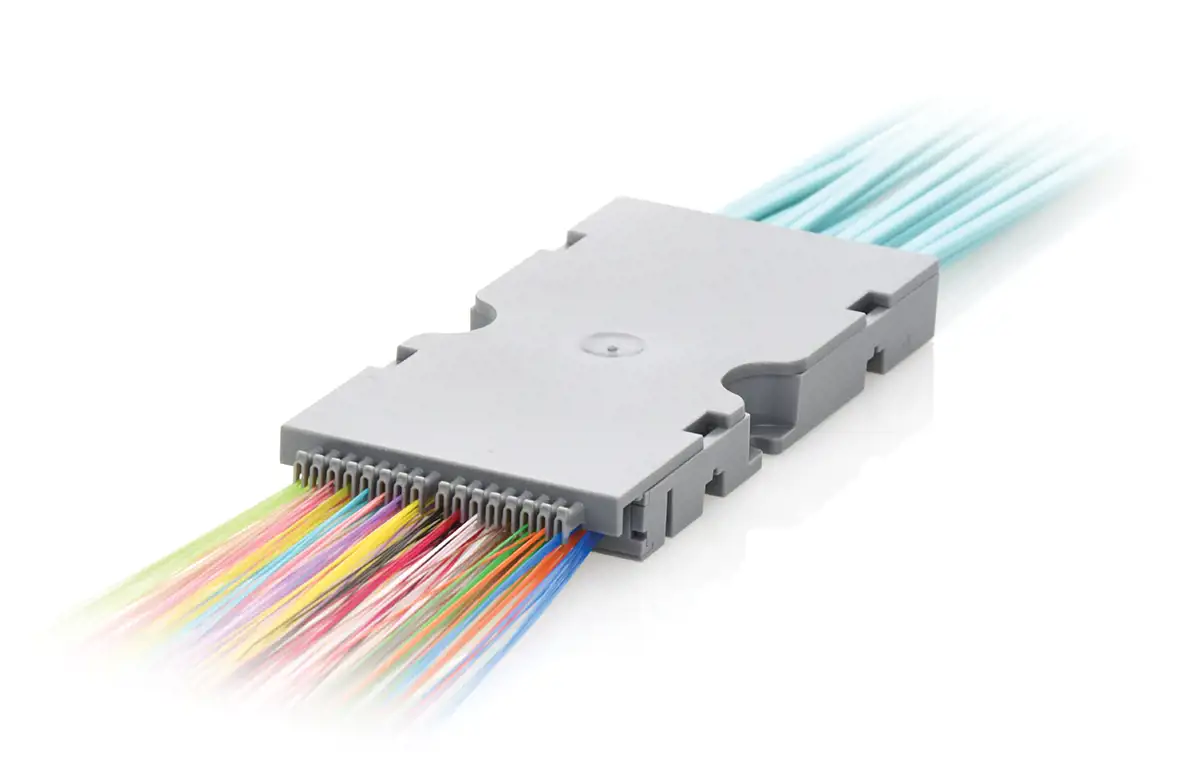

Precision manufactured slots are molded in the base of the EZ Shuffle™ casing to enable consistent and efficient fiber management in any shuffle configuration during the manufacturing process. With organization of up to 16 fibers per ribbon and 16 ribbons per shuffle arrangement, this compact solution facilitates fiber routing meshes of up to 256 fibers and supports various configurations of ribbon fiber and round cables in a 41 x 84 x 9.5 mm enclosure that is stackable and can be housed on or under the host PCB or in a chassis backplane.

Features

• Supports up to 16 fibers per ribbon and 16 ribbons per shuffle
• Manages various configurations of ribbon fiber and round cable
• Maintains shuffle order through precision fiber management slots
• Enables consistent and efficient fiber management of assembly types including shuffles, loopbacks, and daisy chains
• Stackable, compact size that can be stored under host PCB or in chassis backplane
• Eliminates tight termination tolerances and capital equipment cost drivers associated with alternate planar optical fiber circuits
• Non-outgassing UL 94 V-0 casing material
