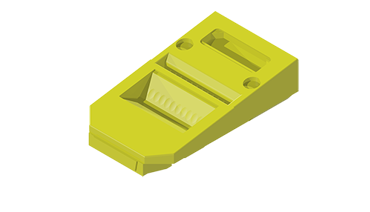

13950, Ferrule, PRIZM® LT 12F MM

特色

  • Bidirectional components
  • Collimating lenses
  • Ferrule float within the connector
  • Integrated alignment pins
  • Keyed for proper mating orientation
  • Quick termination, no polishing
  • TIR (total internal reflection) lens
  • Wavelength independent optical grade material

应用

  • Active Optical Cables
  • MPO pluggable transceivers
  • On-board mounted optical engines

规格

型号
13950
品牌
PRIZM® LightTurn®
类型
Tx/Rx 接口连接器
光纤类型
多模
光纤数量
1x12
光束类型
准直
光束腰
180 微米
光纤包层尺寸
125 微米

下载

产品图纸
