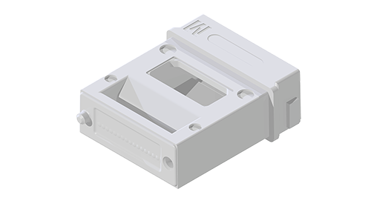

19883, Ferrule, PRIZM®MT 1x16 MM with 850AR coating

特色

  • Collimating lenses
  • Compatible with MXC® connectors and other MT based connector embodiments
  • Debris insensitivity
  • Low insertion force
  • Monolithic ferrule design
  • No physical contact
  • No polish, low cost termination
  • Optional AR coating
  • Telcordia GR-1435 compliant
  • Up to 64 fibers per ferrule; ?16 fibers per row, ?4 rows per ferrule

应用

  • Front panel and backplane
  • High density point-to-point interconnects
  • High performance computing
  • Switch to server interconnects
  • Switch to switch interconnects
  • Switching/routing fabrics

规格

型号
19883
品牌
PRIZM® MT
类型
PRIZM® MT Elite®
光纤类型
多模
光纤数量
1x16
光束类型
准直
光束腰
180 微米
光纤包层尺寸
125 微米

下载

产品图纸
