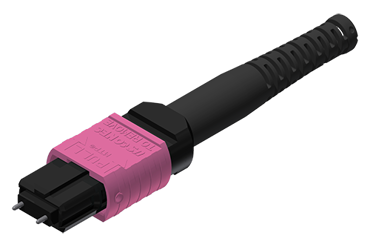

20262, Kit MTP® Universal, 3.0 MM Round, Male Multimode, Flex Boot, Heather Violet Housing, 10N Spring Force
特色
Elliptical guide pin tip to minimize ferrule debris
Exceeds TIA and IEC dimensional requirements for optimal performance
Floating ferrule design ensures fiber contact integrity
Removable housing for interferometry and rework
应用
Array fiber to single fiber breakouts and cassettes
Array trunk cables
FTTh (home) MDU cabling
Parallel optic patch cables: SR-4, SR-8 & PSM4
Qualified to TIA-568.3-D
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5
Structured cabling per TIA-942 & TIA-568
规格
型号
20262
品牌
MTP®
类型
连接器
连接器类型
标准型
Key位方向
标准-TIA-604-5
光纤类型
多模
类型
公头
弹簧力
10N
光纤数量
1x4, 1x8, 1x12
外壳颜色
石楠紫
光缆类型
3.0 mm
工作环境
受控
尾部线缆类型
可弯曲弹性护套3.0mm 和3.6mm
样式
MPO
下载
产品图纸
C20251.pdf
文献资料
MTP_Solutions_Brochure
材料清单套件
部件型号
描述
产品图纸
部件型号
15960
描述
Boot_Black_MTP®_3.0 mm_FLEX
产品图纸
C15960.pdf
部件型号
15633
描述
Crimp Band_MTP®_3.0 mm
产品图纸
C15633.pdf
部件型号
19692
描述
Spring Push_Universal_3.0mm
产品图纸
C19692.pdf
部件型号
17167
描述
Spring_MTP®Universal Seat_9.8N
产品图纸
C17167.pdf
部件型号
17799
描述
Pin Clamp_M-MM_MTP®_Universal
产品图纸
C17799.pdf
部件型号
16693
描述
Hsg_HeatherViolet_MTP®
产品图纸
C10074.pdf
部件型号
17242
描述
Dust Cap_MTP®
产品图纸
C17242.pdf
相关产品
8202, MTP® Round Crimp Tool, 3.0mm
8173, MTP® Round Crimp Die, 3.0
400053-01, Crimp Hand Tool
18476, MTP® Housing Removal Tool, Universal
18472, Ferrule Insertion Cap, MTP® and MTP® PRO
7104, IBC™ Brand Cleaner MPO II
