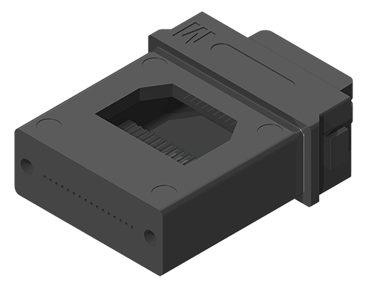

16504, MT-16 Ferrule with boot, 1x16F, Multimode, MT Elite®

特色

  • 0.55mm guide pins; 5.3mm guide pin pitch
  • 16 Fibers per row
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 40G, 100G and 400G link applications
  • Mold marks to indicate fiber type, fiber count and performance

应用

  • FTTx hardened connector cabling infrastructure
  • MTP 16™ brand MPO-16 cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18

规格

型号
16504
品牌
MT-16
性能
MT Elite®
光纤类型
多模低损
光纤数量
1x16
端面类型
平面插芯
研磨类型
PC
光纤包层尺寸
125 微米

下载

产品图纸
文献资料

材料清单套件

部件型号
描述
产品图纸
部件型号
15905
描述
Ferrule_1x16F_MM MT Elite®_PPS
产品图纸
部件型号
23684
描述
Boot_MT Ferr_1x16F_Closed
产品图纸
