特色
- 0.55mm guide pins; 5.3mm guide pin pitch
- 16 Fibers per row
- High Density; fiber pitch: 0.25mm
- Highly glass filled for dimensional stability and stable environmental performance
- Low hygroscopic PPS material for stable environmental performance
- Low insertion loss optimized for 40G, 100G and 400G link applications
- Mold marks to indicate fiber type, fiber count and performance
应用
- FTTx hardened connector cabling infrastructure
- MTP 16™ brand MPO-16 cable assemblies
- Optical backplane connectivity for OBO architectures
- Standards Compliance IEC 61754-7-3; 61754-7-4
- Standards Compliance TIA 604-18
规格

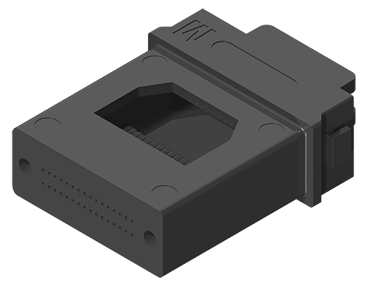

型号
16505
品牌
MT-16
性能
MT Elite®
光纤类型
多模低损
光纤数量
2x16
端面类型
平面插芯
研磨类型
PC
光纤包层尺寸
125 微米
下载
产品图纸
材料清单套件
部件型号
描述
产品图纸
