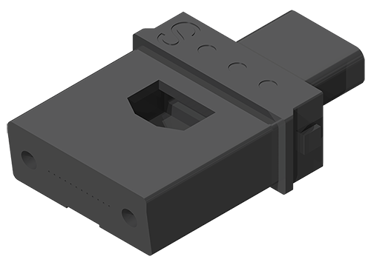

19654, MT Ferrule with boot, 12F, Single-mode, Pre-Angled, 80 um

特色

  • <= 12Fibers per row
  • 0.7mm guide pins; 4.6mm guide pin pitch
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 40G, 100G and 400G link applications
  • Mold marks to indicate fiber type, fiber count and performance
  • Pre-angled ferrule for minimized polishing time

应用

  • FTTx hardened connector cabling infrastructure
  • MTP® brand MPO cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-5
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

规格

型号
19654
品牌
MT
性能
标准型
光纤类型
单模
光纤数量
1x12
端面类型
预磨插芯
研磨类型
APC
光纤包层尺寸
80 微米

下载

产品图纸
文献资料

材料清单套件

部件型号
描述
产品图纸
部件型号
18779
描述
Ferrule_12F SM MT _80um_PA
产品图纸
部件型号
200002-01
描述
Boot_12F MT
产品图纸
