特色
- <= 12Fibers per row
- 0.7mm guide pins; 4.6mm guide pin pitch
- High Density; fiber pitch: 0.25mm
- Highly glass filled for dimensional stability and stable environmental performance
- Low hygroscopic PPS material for stable environmental performance
- Low insertion loss optimized for 40G, 100G and 400G link applications
- Mold marks to indicate fiber type, fiber count and performance
- Pre-angled ferrule for minimized polishing time
应用
- FTTx hardened connector cabling infrastructure
- MTP® brand MPO cable assemblies
- Optical backplane connectivity for OBO architectures
- Standards Compliance IEC 61754-5
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
规格

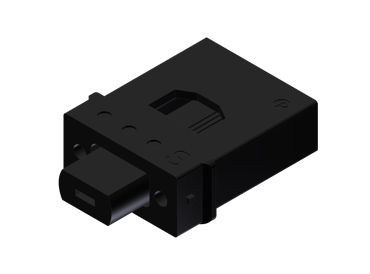

型号
MTFA-4SM5-02
品牌
MT
性能
标准型
光纤类型
单模
光纤数量
1x4
端面类型
平面插芯
研磨类型
APC
光纤包层尺寸
125 微米
下载
产品图纸
材料清单套件
部件型号
描述
产品图纸
