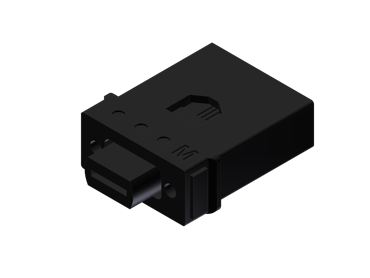

MTF-8MM7-02, MT Ferrule with boot, 8F, Multimode

特色

  • <= 12Fibers per row
  • 0.7mm guide pins; 4.6mm guide pin pitch
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 40G, 100G and 400G link applications
  • Mold marks to indicate fiber type, fiber count and performance

应用

  • FTTx hardened connector cabling infrastructure
  • MTP® brand MPO cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-5
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

规格

型号
MTF-8MM7-02
品牌
MT
性能
标准型
光纤类型
多模
光纤数量
1x8
端面类型
平面插芯
研磨类型
PC
光纤包层尺寸
125 微米

下载

产品图纸
文献资料

材料清单套件

部件型号
描述
产品图纸
部件型号
MTF-8MM7-02-NBC
描述
Ferrule_8F MM MT
产品图纸
部件型号
16880
描述
Boot_8F MT Black
产品图纸
